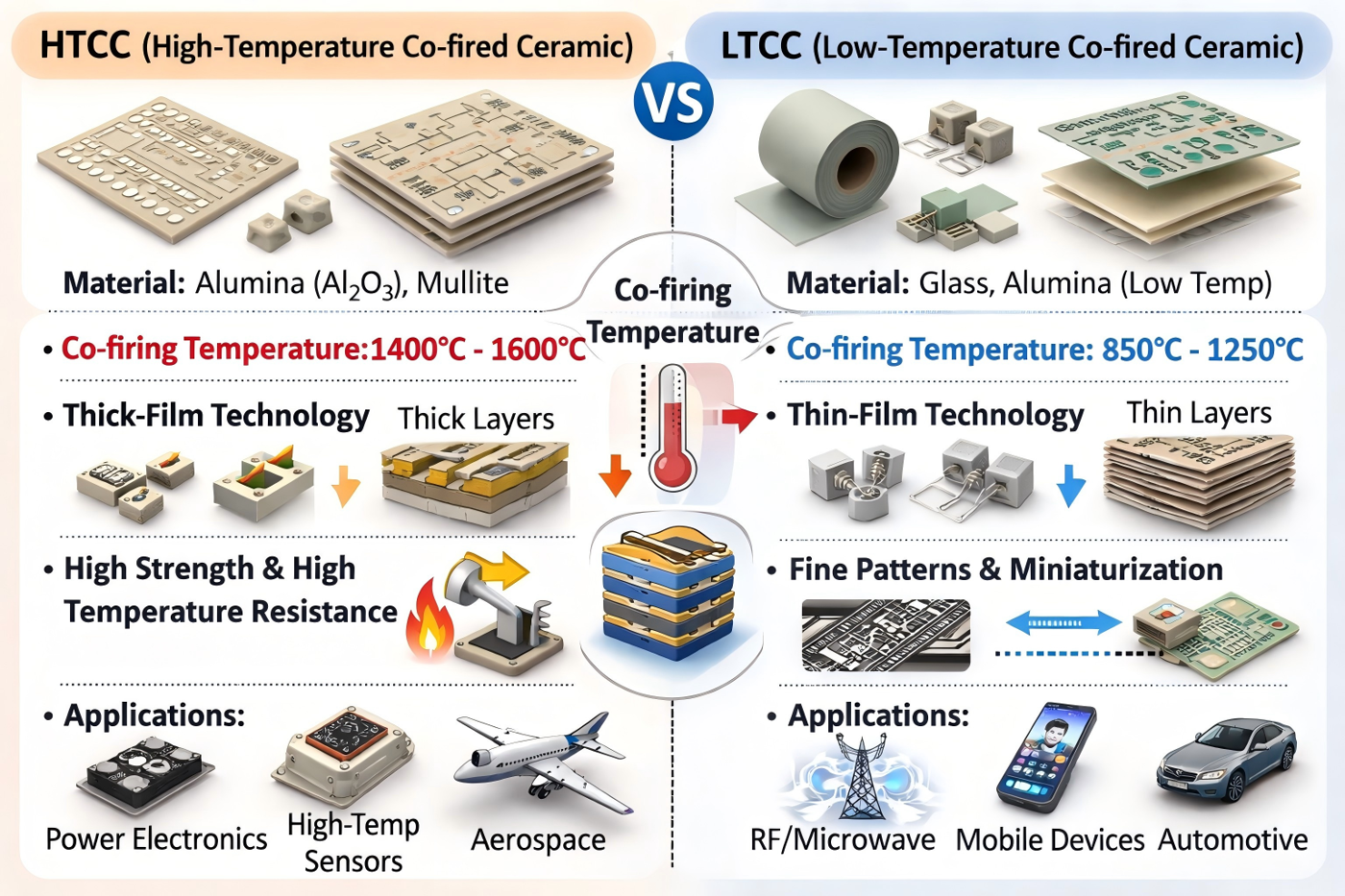

HTCC vs. LTCC: A Comparative Guide to Ceramic Technologies

Introduce

In the field of advanced electronic packaging and hybrid integrated circuits, ceramic substrates not only serve structural support functions but also directly influence electrical performance, thermal management capabilities, and long-term reliability. HTCC (High Temperature Co-fired Ceramic) and LTCC (Low Temperature Co-fired Ceramic) are currently the two most mature multilayer ceramic technologies in application.

There exist fundamental differences between the two in material systems, sintering mechanisms, conductor selection, and application positioning. This paper will conduct a systematic comparison from multiple dimensions to facilitate more engineering-logical judgments during the selection phase.

Material System and Sintering Temperature

HTCC typically uses alumina (Al₂O₃) as the primary substrate, while some high-end applications employ aluminum nitride (AlN) or other high thermal conductivity ceramics. The sintering temperature generally ranges around 1600°C, classifying it as a high-temperature sintering system. Due to the elevated sintering temperature, high-temperature resistant metals such as tungsten (W) or molybdenum (Mo) must be selected for the metal conductor.

A sintering temperature of approximately 1600°C facilitates more extensive grain boundary bonding between ceramic particles, resulting in high material density and low internal porosity, thereby enhancing mechanical strength and long-term stability. This highly dense structure exhibits superior fatigue resistance under high-temperature cycling conditions.

LTCC (Low Temperature Co-fired Ceramic) utilizes glass-ceramic composite materials as the matrix, with sintering temperatures typically ranging from 850–900°C. The relatively low sintering temperature enables the use of high-conductivity metals such as silver (Ag), silver-palladium (Ag-Pd), and copper (Cu) as internal conductors, which constitutes one of the core sources of LTCCs superior high-frequency performance.

The sintering process involves glassy phase flow and recrystallization. The glassy phase softens at low temperatures, promoting interlayer bonding while simultaneously reducing the overall sintering temperature. However, the presence of the glassy phase also implies that the materials structural stability under long-term high-temperature operating conditions is inferior to that of pure oxide systems.

•  HTCC materials feature structural stability and high density, making them ideal for high-power and high-temperature applications.
•  With lower dielectric constant and superior high-frequency transmission characteristics, LTCC is more suitable for RF and microwave applications.

Comparison of Conductor Systems and Electrical Properties

The primary reason HTCC employs tungsten or molybdenum conductors is that precious metals not only melt but also exhibit significant diffusion phenomena under high-temperature sintering conditions, leading to conductor layer failure or increased resistivity. Although this ensures structural integrity, the relatively high resistivity introduces additional losses in high-frequency signal paths.

Due to its low sintering temperature, LTCC can utilize silver or copper conductors. This not only reduces line resistance but also facilitates the formation of smoother conductor interfaces. The roughness of conductor interfaces has a direct impact on microwave frequency band signal loss; therefore, LTCC demonstrates significant advantages in applications such as 5G, millimeter-wave, and higher frequency bands.

Furthermore, LTCC demonstrates process compatibility advantages in implementing embedded passive devices. By precisely controlling the thickness of conductor and dielectric layers, stable impedance control structures can be formed—a feat that is challenging to achieve efficiently with HTCC.

Thermal Performance and Structural Strength

In thermal management capabilities, HTCC typically demonstrates greater stability. The stability of HTCC in high-power environments is reflected not only in thermal conductivity but also in its thermal expansion coefficient (CTE) matching capability. Taking alumina as an example, its CTE matches well with various semiconductor materials, effectively reducing interface stress concentration caused by thermal cycling. This is particularly critical for the long-term reliability of power devices.

Although LTCC can improve heat dissipation pathways through design of thermal vias and increased copper layer thickness, the thermal conductivity of its substrate material itself has a physical limit. Therefore, in extreme thermal load environments, LTCC requires additional heat dissipation structures for effective cooling.

If the application scenario involves:
•  High-power laser module
•  Power amplifier package
•  High-temperature industrial environment
HTCC typically holds a greater advantage.

Thermal Performance and Structural Strength

In thermal management capabilities, HTCC typically demonstrates greater stability. The stability of HTCC in high-power environments is reflected not only in thermal conductivity but also in its thermal expansion coefficient (CTE) matching capability. Taking alumina as an example, its CTE matches well with various semiconductor materials, effectively reducing interface stress concentration caused by thermal cycling. This is particularly critical for the long-term reliability of power devices.

Although LTCC can improve heat dissipation pathways through design of thermal vias and increased copper layer thickness, the thermal conductivity of its substrate material itself has a physical limit. Therefore, in extreme thermal load environments, LTCC requires additional heat dissipation structures for effective cooling.

If the application scenario involves:
•  High-power laser module
•  Power amplifier package
•  High-temperature industrial environment
HTCC typically holds a greater advantage.

Structural Design Degrees of Freedom and Integration Capability

The structural advantage of LTCC lies primarily in its "designability." During the green porcelain stage prior to sintering, the material exhibits certain processability, enabling operations such as punching, cavity formation, and layer stacking positioning, thereby making three-dimensional structural planning feasible. Design engineers are not merely engaged in planar wiring but are constructing a three-dimensional electrical system.

This capability demonstrates particularly significant value in high-frequency or small-scale modules. Through multi-layer stacking, it enables separation of signal layers, power layers, and ground layers, optimizing electromagnetic shielding performance while reducing crosstalk risks. Concurrently, interlayer via arrays shorten electrical paths and enhance structural compactness.

LTCC typically exhibits the following characteristics in terms of integration:
•  Supports embedded resistors, capacitors, and inductors
•  Simple filtering or matching networks can be implemented internally.
•  Beneficial for module miniaturization and lightweight design

In contrast, although HTCC also supports multilayer structures, it is primarily positioned as a high-strength load-bearing and stable packaging platform. In terms of complex passive network embedding and fine high-frequency structures, its flexibility typically falls short compared to LTCC.

Therefore, when the project objective is to enhance integration density, reduce volume while maintaining high-frequency performance, LTCC demonstrates superior structural design advantages; whereas when the focus lies on mechanical strength or high-temperature resistance, HTCC exhibits more pronounced platform attributes.

Dimensional Accuracy and Shrinkage Control

The dimensional stability of HTCC primarily stems from its highly dense structure formed through high-temperature sintering. Its shrinkage behavior is relatively uniform and exhibits strong regularity, ensuring consistent batch performance once the material formulation and sintering curve stabilize. For large ceramic substrates or high-pin-count packaging structures, HTCC demonstrates superior predictability in terms of planarity and overall strength.

The shrinkage mechanism of LTCC is more complex. Since the glass phase participates in the sintering process, it affects the shrinkage ratios in all directions during the softening and flow stages. This can lead to minor warping or dimensional deviations, especially in cases with multiple layers or locally heterogeneous structures. Therefore, compensation calculations and trial firing validation are typically required during the design phase.

For structural components with stringent tolerance requirements, HTCC employs a relatively straightforward dimensional control approach, whereas LTCC projects rely more heavily on preliminary data accumulation and process window optimization. In other words, LTCC can achieve high precision, provided that the shrinkage behavior is thoroughly understood and appropriate design compensation is implemented.

Cost Structure and Batch Adaptability

HTCCs cost structure is more inclined toward equipment and energy consumption investments. High-temperature kilns and prolonged sintering cycles result in higher fixed costs, but the material system is mature, and the process path is relatively standardized, making it suitable for long-term stable large-scale production.

The cost of LTCC primarily stems from material selection and process control. Fluctuations in silver paste prices directly impact overall cost structures, while multilayer stacking and precise alignment require advanced process management capabilities. In small, high-value-added modules, these costs can be offset by performance advantages. However, in price-sensitive markets, careful evaluation is essential.
•  HTCC is more suitable for industrial products with stable structures and long-term fixed requirements.
•  LTCC is more suitable for technology-driven, performance-oriented high-frequency electronic products.

Typical application scenarios

Typical HTCC applications:
•  Industrial Electronic Module Packaging
•  High-temperature sensor housing
•  Power Device Base

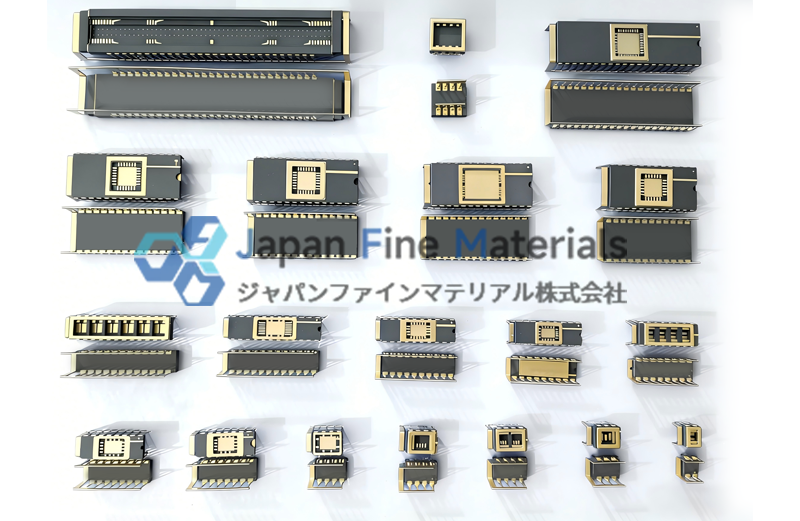

•  Multi-pin ceramic package (such as some CPGA-class structures)
Typical applications of LTCC:
•  radio frequency module
•  Filter and Antenna Module
•  Microwave communication component
•  High-density multilayer signal board
The core logic for equipment selection should focus on four dimensions: operating frequency, power rating, integration requirements, and cost control, rather than merely comparing material advancement levels.

Conclusion

HTCC prioritizes structural strength and high-temperature resistance, making it ideal for high-power applications, extreme heat conditions, durability requirements, and harsh environments.

LTCC prioritizes electrical performance and integration density, making it ideal for high-frequency, highly integrated, and miniaturized designs.

There is no absolute superiority or inferiority between the two technologies; the only difference lies in the compatibility of application scenarios. Defining electrical parameters, thermal loads, dimensional tolerances, and cost boundaries during the initial project phase is crucial to avoid rework and design reconstruction in later stages.
