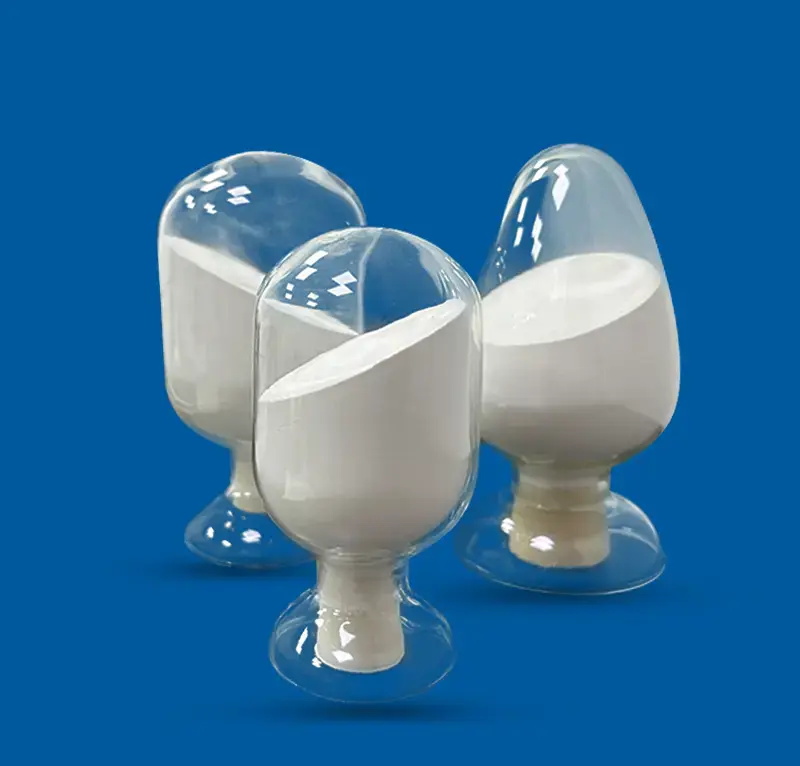

Alumina Granulation Powder

Name

Alumina Granulation Powder
Features

Alumina granulated powder is a granular powder prepared to adapt to the production process of alumina ceramics. It has characteristics such as high purity, high activity, low-temperature sintering, high density, non-sticking to molds, no cracking, no porosity in the sintered product, and good consistency of the powder.
Explanation

JFM's alumina granulation powder features a robust morphology, high purity, and good reactivity. It offers high green body strength, low sintering temperature, high ceramic density, and a uniform microstructure, making it suitable for the manufacturing of electronic substrates, structural ceramics, and insulating ceramics. With superior flowability and packing performance, JFM's alumina granulation powder is easy to compact and shape, resulting in high density and strength after sintering, making it an ideal material for high-end engineering ceramics.

High purity and high reactivity

Good sphericity

Uniform particle size distribution

Good flowability

Good moldability

Low adhesion

High green density

High sintering activity

Low forming temperature

Wide sintering range

Stable shrinkage rate

The porcelain has a good density and good performance

Item	Unit	JC-A997ASDP
Chemical composition
Na₂O total	ppm	400
CaO	ppm	300
SiO₂	ppm	400
Fe₂O₃	ppm	300
MgO	ppm	600
Physical Indicators
Specific surface area	m²/g	7.0-9.0
Original grain size D50	μm	0.4-0.6
Median particle size of powder	μm	80-100
Apparent density	g/cm³	1.0-1.2
Performance
Compacted density(150MPa)	g/cm³	2.4
Density(1550℃，2h)	g/cm³	3.92

* This data is an example of test results in lab. It may be different from the actual characteristics in a particular manufacturing process.
