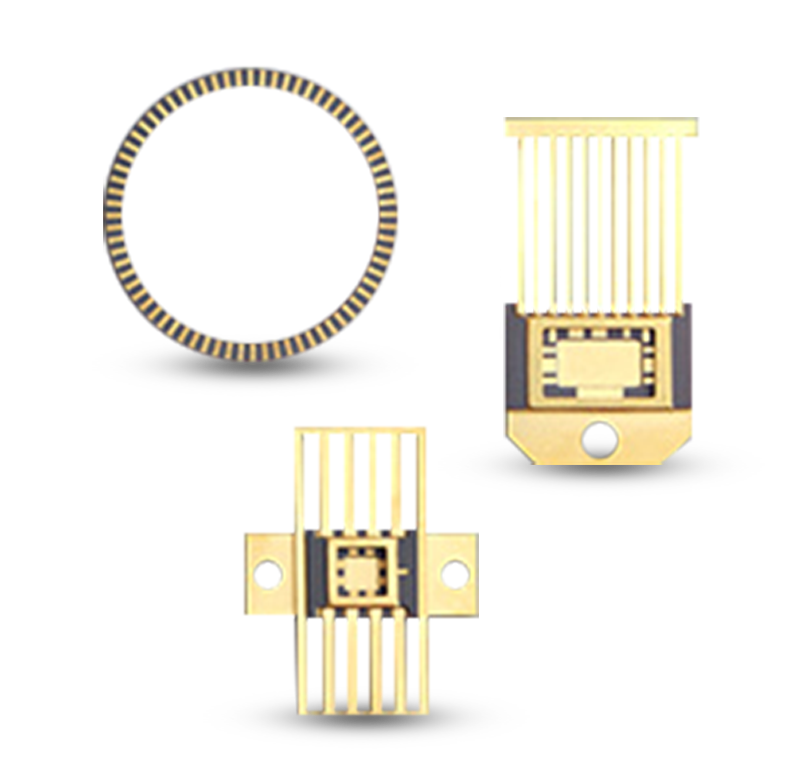

Custom Ceramic Packages
-
Product Description
Providing high quality and high reliability custom ceramic components, we specialize in special-shaped ceramic packages, ceramic connectors, and ceramic heating elements. Our products are designed to meet the unique structural and performance requirements of integrated circuits, optoelectronic devices, or hybrid functional modules in non-standard application scenarios.
-
Corresponding Materials
- Alumina
- Aluminum Nitride
- Zirconia
- Silicon Carbide
- Piezoelectric Ceramics
- Kovar Alloy
- Stainless Steel Inserts
-
Applications
Product Properties
Superior environmental resilience
Good electrical insulation and dielectric stability
High chemical inertness
High hardness and wear resistance
Designable for multifunctional integration
Good biocompatibility
Low Resistivity
Good Moisture Resistance
High EMI Shielding Capability
Low Coefficient of Thermal Expansion
Material property table
| Product Model | Ceramic Body Size | Lead Pitch | Sealing Area | Die Attach Area | Total Thickness |
|
CDIL08-01 |
9.70×7.40 |
2.54 |
3.35×5.40 |
套用D06S2-03 |
2.00 |
* This data is an example of test results in lab. It may be different from the actual characteristics in a particular manufacturing process.
