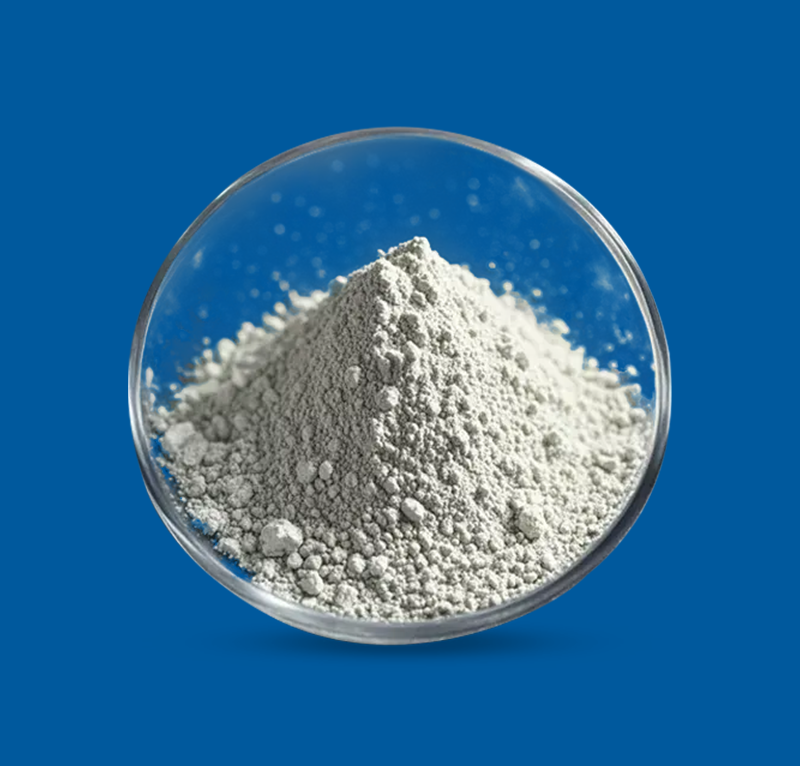

Aluminum Nitride Granulation Powder
-
Name
Aluminum Nitride Granulation Powder
-
Features
Aluminum nitride granulation powder features high purity and high activity, along with good flowability and green body strength, making it an ideal choice for electronic ceramic substrates and thermal conductive materials
-
Explanation
Description
Main Characteristics
High purity and high reactivity
Good sphericity
Uniform particle size distribution
Good flowability
Good moldability
Low adhesion
High green density
High sintering activity
Low forming temperature
Wide sintering range
Stable shrinkage rate
The porcelain has a good density and good performance
Material property table
| Item | Unit | JC-AN180SDP |
| Chemical composition | ||
| O | % | 0.9 |
| C | ppm | 500 |
| Na | ppm | 50 |
| Ca | ppm | 100 |
| Si | ppm | 50 |
| Fe | ppm | 20 |
| Physical Indicators | ||
| Specific surface area | m2/g | 2.8-3.4 |
| Original grain size D50 | μm | 1.1-1.3 |
| Median particle size of powder | μm | 70-90 |
| Apparent density | g/cm3 | 0.9-1.0 |
| Performance | ||
| Density(1850℃) | g/cm3 | 3.3 |
| Thermal conductivity | W/(m・K) | 180 |
* This data is an example of test results in lab. It may be different from the actual characteristics in a particular manufacturing process.
