Ceramic Dual In-line Package(CDIP)
-
Product Description

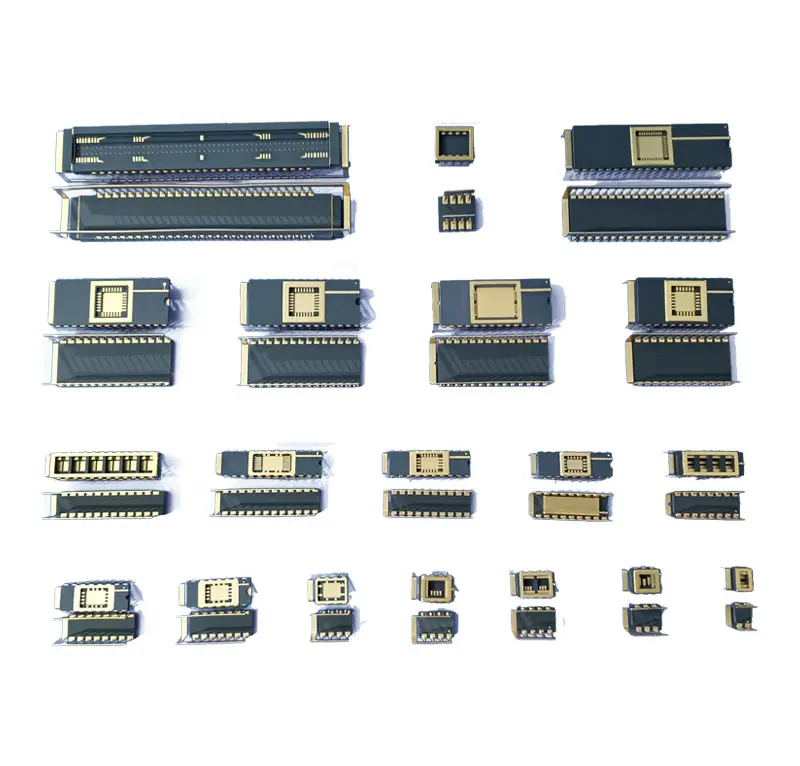

Ceramic Dual In-line Package(DIP) features a standard 2.54mm pitch with pin counts up to 64. We offer multiple row spacings—Narrow (7.62mm), Medium (10.16mm), and Wide (15.24mm)—to suit diverse design needs. These packages are ideal for ICs, optocouplers, and MEMS devices requiring low I/O counts and moderate assembly density. Additional options include integrated heat sinks and sealing via parallel seam welding or eutectic solder reflow.
-
Corresponding Materials
- Alumina
- Aluminum Nitride
- Glass-ceramic Composites
- Kovar
- Copper (Cu)
- Tungsten-Copper (W-Cu)
- Molybdenum-Manganese (Mo-Mn)
-
Applications
Product Properties
Material property table
| Product Model | Ceramic Body Size | Lead Pitch | Sealing Area | Die Attach Area | Total Thickness |
|
D48L2-01 |
60.96×15.00 |
2.54 |
12.70×12.70 |
8.89×8.89 |
2.40 |
|
D40L2-01 |
50.80×15.00 |
2.54 |
12.70×12.70 |
7.87×7.87 |
2.40 |
|
HD36-01 |
45.72×14.98 |
2.54 |
20.20×8.54 |
24.70×14.50 |
2.00 |
|
D28S2-03 |
38.60×7.37 |
2.54 |
38.40×7.20 |
2.10×3.30 |
3.70 |
|
D28S2-01 |
35.56×7.37 |
2.54 |
11.80×7.20 |
7.11×5.59 |
2.15 |
|
D28L2-01 |
35.56×15 |
2.54 |
12.70×12.70 |
6.40×6.40 |
2.50 |
|
D24S2-04 |
30.48×7.37 |
2.54 |
11.94×7.36 |
5.75×3.80 |
1.75 |
|
D24S2-02 |
33.50×7.37 |
2.54 |
32.80×7.10 |
3.80×2.85 |
3.50 |
|
D24S2-01 |
30.48×7.37 |
2.54 |
14.40×7.20 |
9.15×4.45 |
2.16 |
|
D24L2-01B |
30.48×15.00 |
2.54 |
12.70×12.70 |
6.40×6.40 |
2.40 |
|
D24L2-01 |
30.48×15.00 |
2.54 |
12.70×12.70 |
6.40×6.40 |
2.40 |
|
D18M2-01 |
22.86×9.91 |
2.54 |
9.40×8.70 |
5.50×5.00 |
2.40 |
|
D16S2-11 |
20.60×7.37 |
2.54 |
19.20×7.00 |
3.30×5.00 |
2.80 |
|
D16S2-06 |
20.32×7.37 |
2.54 |
16.60×7.20 |
2.60×3.20 |
3.30 |
|
D16S2-05 |
20.00×7.37 |
2.54 |
19.60×7.00 |
3.90×5.40 |
3.40 |
|
D16S2-02/K |
20.32×7.37 |
2.54 |
11.80×7.20 |
5.60×3.80 |
2.10 |
|
D16S2-02C |
20.32×7.37 |
2.54 |
11.80×7.20 |
5.60×3.80 |
2.10 |
|
D16S2-02B |
20.32×7.37 |
2.54 |
11.80×7.20 |
5.60×3.80 |
2.10 |
|
D16S2-02A |
20.32×7.37 |
2.54 |
11.80×7.20 |
5.60×3.80 |
2.10 |
|
D16S2-02 |
20.32×7.37 |
2.54 |
11.80×7.20 |
5.60×3.80 |
2.10 |
|
D08S2-12 |
9.70×7.37 |
2.54 |
7.70×7.00 |
4.20×5.00 |
2.10 |
|
D08S2-11A |
9.70×7.37 |
2.54 |
9.30×7.20 |
2.70×2.50 |
3.40 |
|
D08S2-03B |
9.90×7.37 |
2.54 |
9.70×7.17 |
3.55×5.37 |
3.00 |
|
D08S2-03A |
9.90×7.37 |
2.54 |
9.70×7.17 |
3.55×5.37 |
3.00 |
|
D08S2-01 |
10.16×7.37 |
2.54 |
8.80×6.90 |
5.10×3.40 |
2.10 |
|
D08M-04 |
19.46×9.91 |
7.62 |
19.10×8.80 |
7.60×4.40 |
3.50 |
|
D08M-01A |
14.22×10.03 |
2.54 |
13.40×9.60 |
9.60×8.10 |
30 |
|
D06S2-02 |
9.00×7.37 |
2.54 |
7.20×6.20 |
3.70×3.00 |
3.10 |
|
D06S2-01 |
9.70×7.37 |
2.54 |
9.30×6.90 |
7.30×3.30 |
3.50 |
|
D04S2-01 |
4.70×6.60 |
2.54 |
6.60×4.70 |
2.60×3.00 |
2.90 |
* This data is an example of test results in lab. It may be different from the actual characteristics in a particular manufacturing process.
