Silicon Nitride Granulation Powder

Name

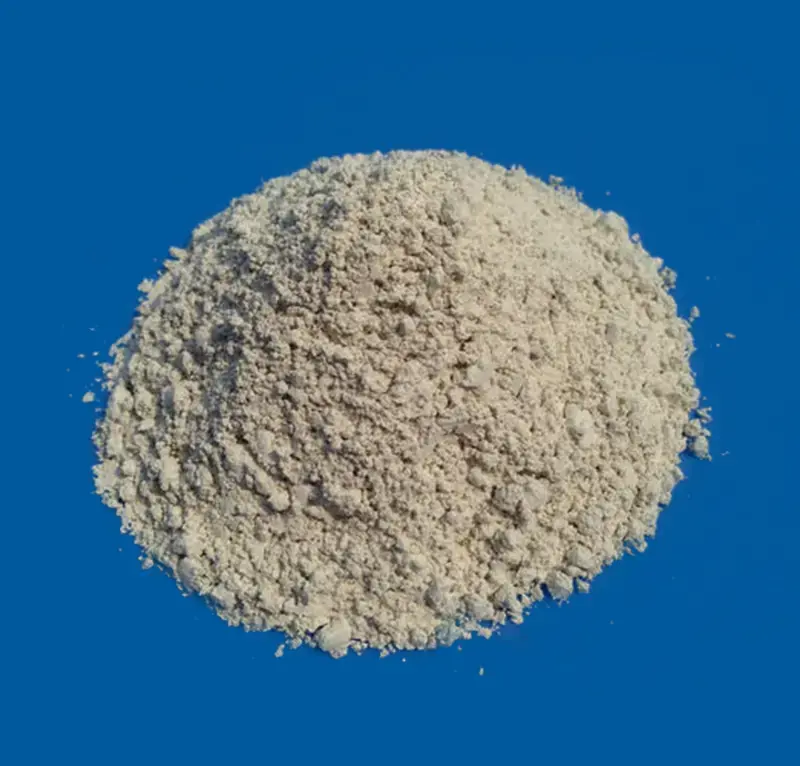

Silicon Nitride Granulation Powder
Features

Silicon nitride granulation powder is characterized by high dispersibility, homogeneity, purity, and reactivity. We utilize advanced sintering techniques to significantly enhance the density and mechanical properties of silicon nitride ceramics, leading to their widespread applications in high-end industrial sectors such as electronics, energy, petrochemical refining, and optical components.
Explanation

The silicon nitride granulation powder produced by JFM is made from high-purity raw materials, ensuring good flowability and fillability, making it suitable for dry pressing processes. Its uniform particle size and sphericity enhance the post-sintering density and uniformity, resulting in high strength and good fracture toughness. Utilizing advanced dry pressing and cold isostatic pressing techniques

High purity and high reactivity

Good sphericity

Uniform particle size distribution

Good flowability

Good moldability

Low adhesion

High green density

High sintering activity

Low forming temperature

Wide sintering range

Stable shrinkage rate

The porcelain has a good density and good performance

Item	Unit
Chemical composition
N	Wt/%	≥38.0
O	Wt/%	＜1.50
C	Wt/%	＜0.15
Free silica	Wt/%	＜0.8
Ca	Wt/%	＜0.05
Al	Wt/%	＜0.04
Fe	Wt/%	＜0.16
α phase	Wt/%	≥93
Physical Indicators
Specific surface area	m²/g	10-11
Original grain size D50	μm	0.5-0.7
Median particle size of powder	μm	50-70
Apparent density	g/cm³	0.9-1.0
Performance
Compaction density（150MPa）	g/cm³	1.7-1.8
Density	g/cm³	≥3.20

* This data is an example of test results in lab. It may be different from the actual characteristics in a particular manufacturing process.
