Home Advanced Ceramics Alumina Insulator
Insulator

Insulator

  • Product Description

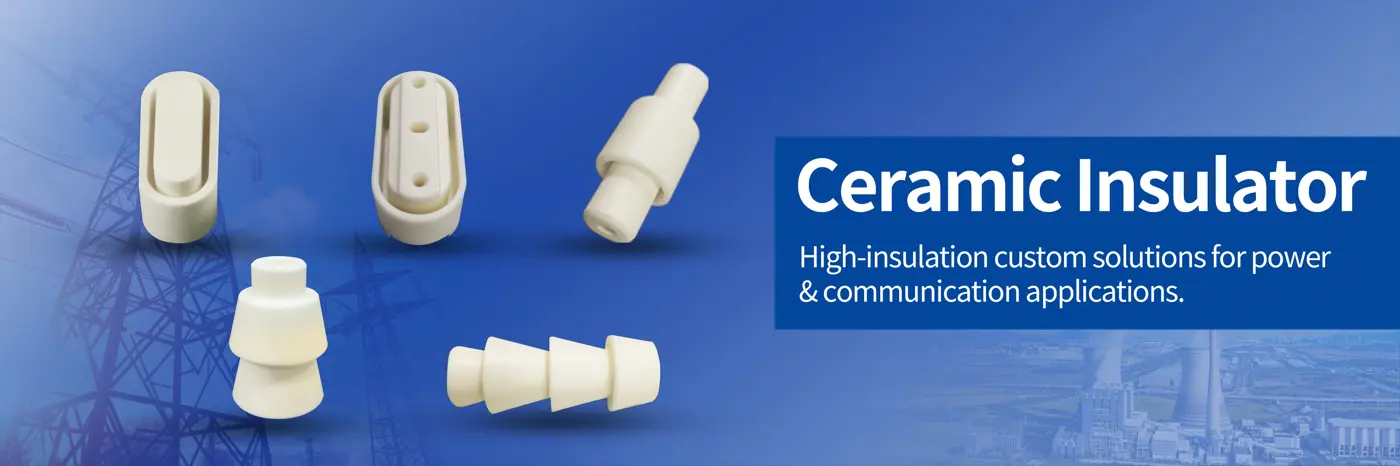

    JFM offers a range of high-quality insulator products, including ceramic insulators, glass insulators, composite insulators, insulator sleeves, and bases, tailored to meet diverse customer needs. We customize based on specific dimensions, shapes, and performance requirements for safe and stable operation in power, communication, semiconductor, and industrial automation sectors.

  • Product Properties

    Good Insulation
    Good Mechanical Strength
    Weather Resistance
    Chemical Corrosion Resistance
    Good Thermal Stability

Technical support

Customize the product according to your usage

We would like to improve your product design, improve performance and reduce costs to suit your needs

Enhancement of after-sales services for product applications

  Alumina Zirconia Yttria Aluminum Nitride Silicon Nitride Silicon Carbide
Item (JFM) Unit JC-AZ25B JC-A95B JC-A90B JC-A95B JC-A97B JC-A97A JC-A99A JC-Z08 JC-ZA20 JC-Y100A JC-AN100A JC-AN180 JC-SN-GPS-01 JC-SN-GPS-02 JC-SC101
Physical Property
Content % - 95.0% 99%% 99.5% 99.7% 99.7% 99.9% - - - - - - - -
Colour   Milky White White White Milky White Milky White Milky White White Milky White Milky White Greyish White Milky White Greyish White Greyish White Greyish White Black
Density g/cm3 4.4 3.7 3.8 3.9 3.92 3.94 3.95 6.0 5.6 4.9 3.2 3.3 3.21 3.23 3.15
Mechanical Behavior
Vickers Hardness GPa 15 13.7 15.2 16.0 17.2 17.2 17.5 12.5 10.5 6 11.2 10.5 13.5 14.8 23
Bending Strength Mpa 650 350 310 360 380 380 400 1000 750 130 220 320 720 900 500
Compressive Strength Mpa - - 2160 2350 2380 2400 2560 - - - - - 3200 3200 -
Young's Modulus GPa 320 320 360 370 380 380 380 200 200 160 310 320 300 310 410
Poisson's Ratio / 0.25 0.23 0.23 0.23 0.23 0.23 0.23 0.31 0.31 - 0.24 0.24 0.28   0.17
Fracture Toughness Mpa.m1/2 5 3-4 3-4 4 4.8 5 5.4 4.6 7.4 1.1 3.2 3.3 6.5 7 3.2
Thermal Property
Coefficient of Thermal Expansion 10-6/°C 9 7.2 7.2 7.2 7.2 7.2 7.2 10.5 10 7.2 4.6 4.6 2.8 2.8 3.8
Thermal Conductivity W/(m.K) 19 24 29 32 32 32 34 3 3 14 120 180 26 28 170
Specific Heat Capacity J/(g.K) - 0.78 0.79 0.78 0.79 0.79 0.78 0.46 0.46 0.45 0.72 0.72 0.64 0.64 0.67
Maximum Operating Temperature °C 1600 1500 1600 1600 1600 1600 1600 2200 1600 1800 800 800 1200 1200 1000
Electrical Property
Dielectric Strength kv/mm - 15 15 15 15 15 15 11 13 11 16 14 13 13 -
Dielectric Constant （1MHz）  - - 9.4 9.9 9.9 9.9 9.9 9.9 33 28 11 8.5 8.6 9.6 9.6 -
Dielectric Losses （1MHz） （X10-4） - 4 2 1 1 1 1 16 17 5 2 3 3 3 -
Volume Resistivity 20℃ Ω.cm >1012 >1014 >1014 >1014 >1014 >1014 >1014 1013 >1014 >1013 >1014 >1014 >1014 >1014 108
Volume Resistivity 300℃ Ω.cm - 1010 1010 1013 1013 1013 1013 106 106 1010 1011 1010 1012 1012 -

* This data is an example of test results in lab. It may be different from the actual characteristics in a particular manufacturing process.

  • Density
  • Flexural Strength
  • Compressive Strength
  • Young's Modulus
  • Fracture Toughness
  • Thermal Expansion
  • Thermal Conductivity
  • Specific Heat
  • Max. Service Temp.
  • Dielectric (1MHz)

* This data is an example of test results in lab. It may be different from the actual characteristics in a particular manufacturing process.
