Nozzle

Nozzle

  • Product Description

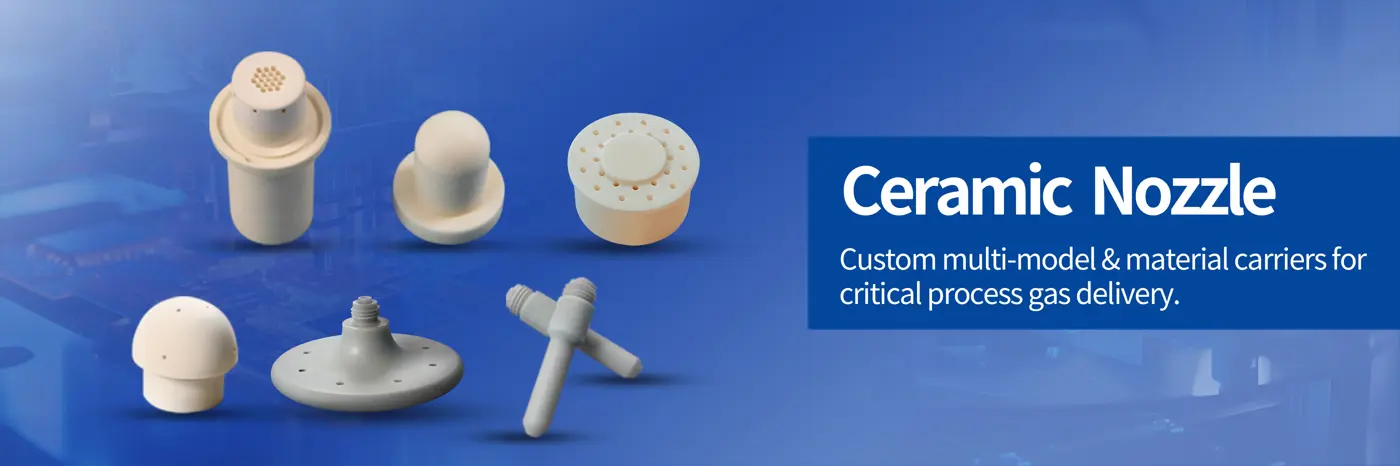

    Ceramic nozzles play a vital role as the final conduit for process gases flowing into reaction chambers.

  • Product Properties

    Wear Resistance
    Heat Resistance
    Corrosion Resistance
    High Thermal Insulation
    Insulation
    Environmental Consideration

Technical support

Customize the product according to your usage

We would like to improve your product design, improve performance and reduce costs to suit your needs

Enhancement of after-sales services for product applications

  Alumina Zirconia Yttria Aluminum Nitride Silicon Nitride
Item (JFM) Unit JC-AZ025A JC-A995A JC-A990A JC-A995A JC-A997A JC-A997B JC-A999A JC-Z08 JC-ZA20 JC-Y100A AN100A AN180 JC-SN-GPS-01 JC-SN-GPS-02
Physical Property
Content % - 95.0% 99.0% 99.5% 99.7% 99.7% 99.9% - - - - - - -
Colour   Milky White White White Milky White Milky White Milky White White Milky White Milky White Greyish White Milky White Greyish White Greyish White Greyish White
Density g/cm3 4.4 3.7 3.8 3.9 3.92 3.94 3.95 6.0 5.6 4.9 3.2 3.3 3.21 3.23
Mechanical Behavior
Vickers Hardness GPa 15 13.7 15.2 16.0 17.2 17.2 17.5 12.5 10.5 6 11.2 10.5 13.5 14.8
Bending Strength Mpa 650 350 310 360 380 380 400 1000 750 130 220 320 720 900
Compressive Strength Mpa - - 2160 2350 2380 2400 2560 2100 2300 3000 450 - 3200 3200
Young's Modulus GPa 320 320 360 370 380 380 380 200 200 160 310 320 300 310
Poisson's Ratio / 0.25 0.23 0.23 0.23 0.23 0.23 0.23 0.31 0.31 - 0.24 0.24 0.28 -
Fracture Toughness Mpa.m1/2 5 3-4 3-4 4 4.8 5 5.4 4.6 7.4 1.1 3.2 3.3 6.5 7
Thermal Property
Coefficient of Thermal Expansion 10-6/°C 9 7.2 7.2 7.2 7.2 7.2 7.2 10.5 10 7.2 4.6 4.6 2.8 2.8
Thermal Conductivity W/(m.K) 19 24 29 32 32 32 34 3 3 14 120 180 26 28
Specific Heat Capacity J/(g.K) - 0.78 0.79 0.78 0.79 0.79 0.78 0.46 0.46 0.45 0.72 0.72 0.64 0.64
Maximum Operating Temperature °C 1600 1500 1600 1600 1600 1600 1600 2200 1600 1800 800 800 1200 1200
Electrical Property
Dielectric Strength kv/mm - 15 15 15 15 15 15 11 13 11 16 14 13 13
Dielectric Constant （1MHz）  - - 9.4 9.9 9.9 9.9 9.9 9.9 33 28 11 8.5 8.6 9.6 9.6
Dielectric Losses （1MHz） （X10-4） - 4 2 1 1 1 1 16 17 5 2 3 3 3
Volume Resistivity 20℃ Ω.cm >1012 >1014 >1014 >1014 >1014 >1014 >1014 1013 >1014 >1013 >1014 >1014 >1014 >1014
Volume Resistivity 300℃ Ω.cm - 1010 1010 1013 1013 1013 1013 106 106 1010 1011 1010 1012 1012

* This data is an example of test results in lab. It may be different from the actual characteristics in a particular manufacturing process.

  • Density
  • Flexural Strength
  • Compressive Strength
  • Young's Modulus
  • Fracture Toughness
  • Thermal Expansion
  • Thermal Conductivity
  • Specific Heat
  • Max. Service Temp.
  • Dielectric (1MHz)

* This data is an example of test results in lab. It may be different from the actual characteristics in a particular manufacturing process.
