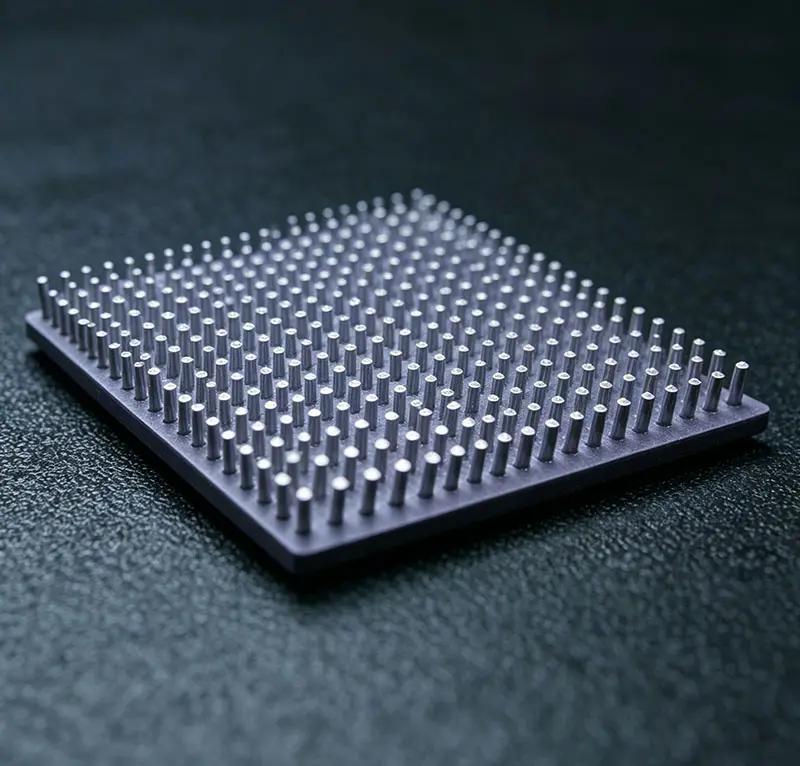

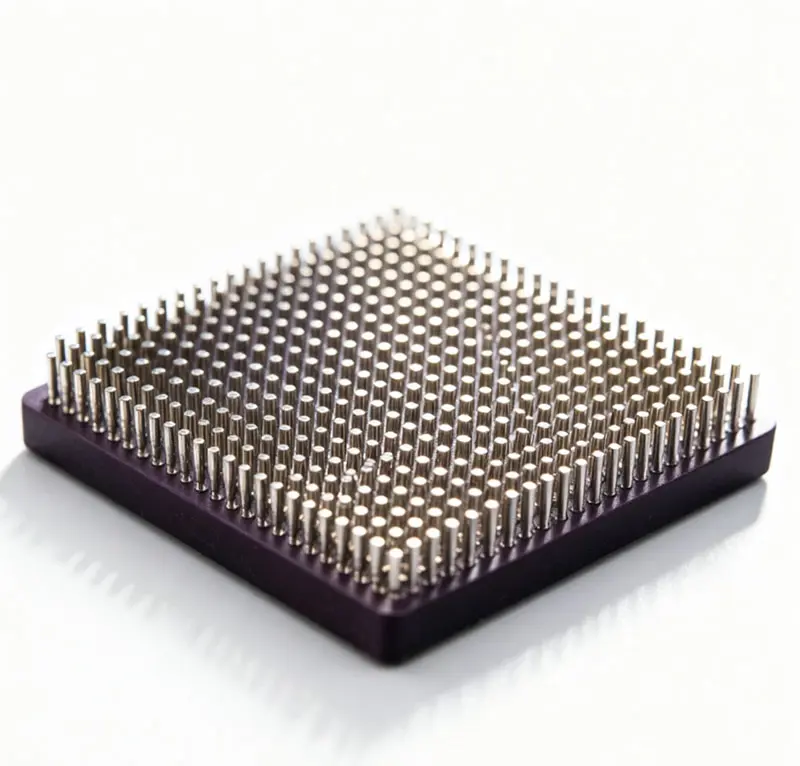

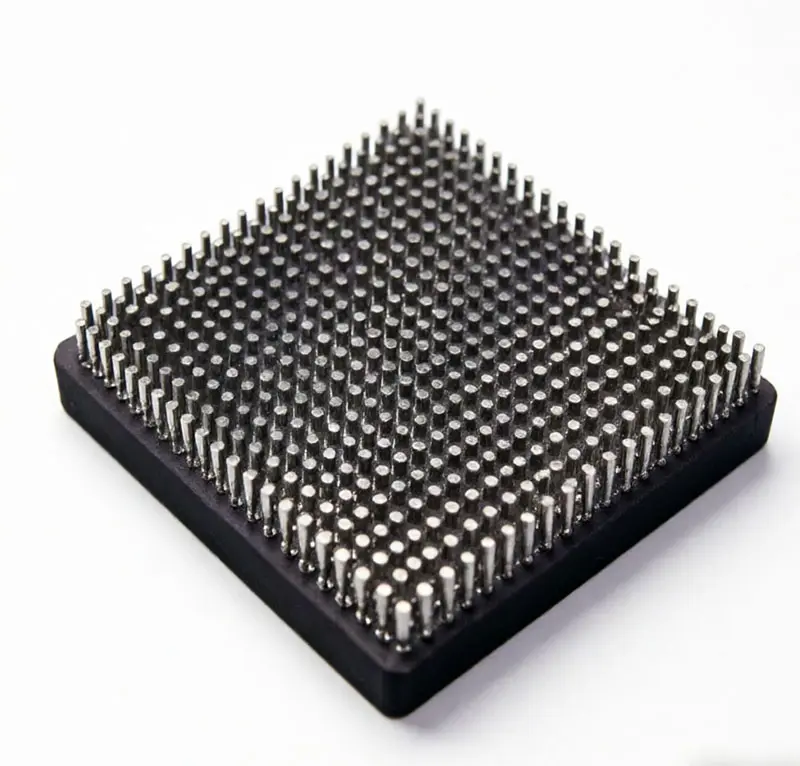

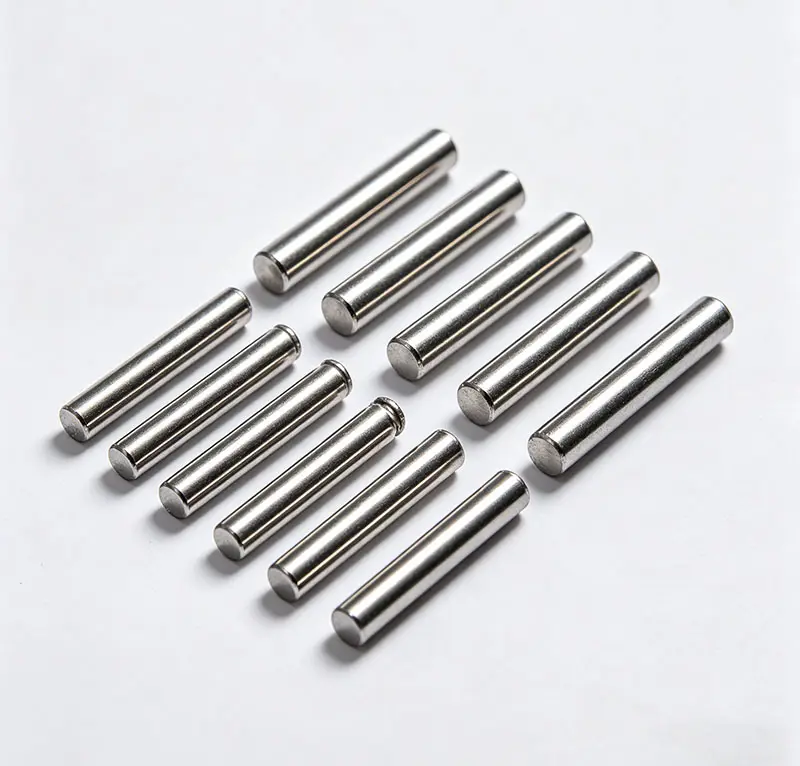

Solder Column
-
Product Description
Solder columns are a critical interconnect material used in high-reliability electronic packaging, primarily designed to address the stress challenges arising from mismatched coefficients of thermal expansion (CTE) between ceramic packages and printed circuit boards. JFM supplies solder column materials and assists customers in matching packaging formats, alloy systems and assembly process requirements.
Key Features
Solder columns are suitable for high-reliability electronic packaging applications and offer the following characteristics:
- Good stress buffering performance
- Good thermal fatigue resistance
- Stable structural support and morphological consistency
- Contributes to improved process yield
- Suitable for packaging in harsh environments
Application Areas
Solder column are primarily used in the following electronic packaging and interconnection scenarios:
- CGA/CCGA array packaging and board-level assembly: Used for external electrical connections between CGA/CCGA packages and PCBs, suitable for SMT assembly with array-type interconnect structures.
- High-reliability electronic systems: Suitable for various critical electronic modules requiring long-term operation in environments with complex stresses or wide temperature ranges.
- High-performance computing and servers: Used in high-power processor packaging applications with stringent requirements for thermal management and stress distribution.
- Critical industrial control: Suitable for control systems in infrastructure sectors such as energy and rail transport, where connection stability is subject to stringent requirements.
- Precision communication equipment: Used in base stations and precision communication components where high requirements are placed on signal transmission stability and material fatigue strength.
Product Specifications
| Parameter Category | Capabilities & Features |
| Melting Characteristics | Possesses a stable solid-liquid phase line, facilitating control of the welding process |
| Compatible Processes | Suitable for automated or semi-automated stud insertion processes, ideal for stable and efficient high-volume packaging applications |
| Dimensional Capabilities | Suitable for applications with stringent requirements for pitch accuracy and height consistency |
| Applications | Ceramic packaging board-level interconnects; device modification, rework and verification assembly |
* For further product information and application support, please contact us
