Solder Preform Frame
-
Product Description
The solder preform frame is a solid-state solder material precision-engineered to meet the specific requirements of device packaging structures and soldering zones, enabling effective control of solder usage. The product offers good mechanical and thermal properties, helping to ensure the stability of electronic packaging processes and long-term connection reliability. JFM focuses on high-end sectors such as power semiconductors, providing specialized solder solutions to meet specific process standards and reliable soldering requirements.
Key Features
As a critical bonding material for high-reliability electronic packaging, solder frames possess the following characteristics:
- Good thermal and electrical conductivity
- Good resistance to thermal fatigue and creep
- Support for a diverse range of alloy systems
- Flexible geometries and precision
- Strict dimensional tolerance control
Application Areas

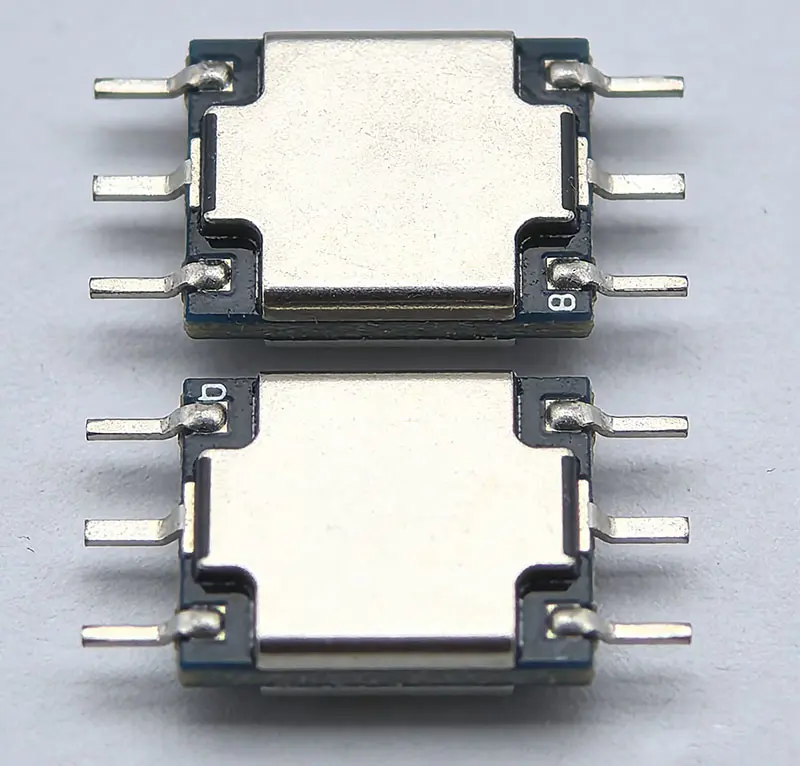

- Sealing and brazing: Suitable for brazing covers on crystal oscillators, MEMS sensors, high-reliability ceramic housings and metal enclosures
- Optoelectronic device packaging: Suitable for packaging, bonding and structural welding applications in products such as laser devices and photodetectors
- RF and Microwave: Suitable for high-frequency electronics and communication modules where solder distribution precision and electromagnetic shielding are required
- Precision thermal management applications: Widely used in microelectronic packaging processes where thermal conductivity, joint strength and long-term stability are critical
- Precision electronic packaging: Suitable for precision packaging applications requiring precise solder placement, controlled solder volume and assembly consistency
- Communications and Industrial Electronics: Suitable for electronic packaging applications in telecommunications equipment, industrial control systems and other fields requiring reliable connections and process stability
Product Specifications
| Parameter Category | Capabilities & Features |
| Material System | Solder alloy systems can be tailored to meet specific application requirements |

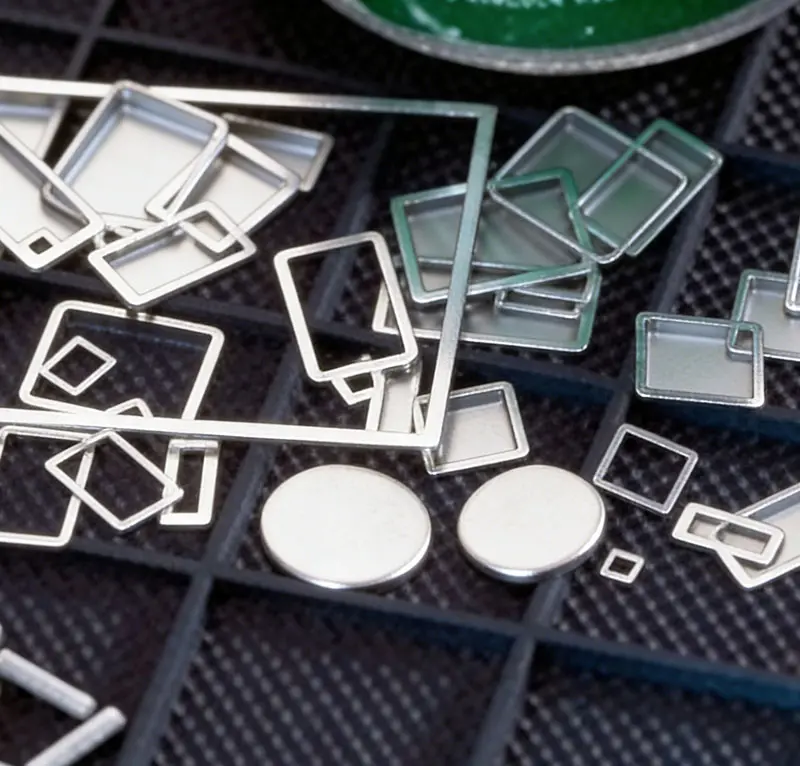

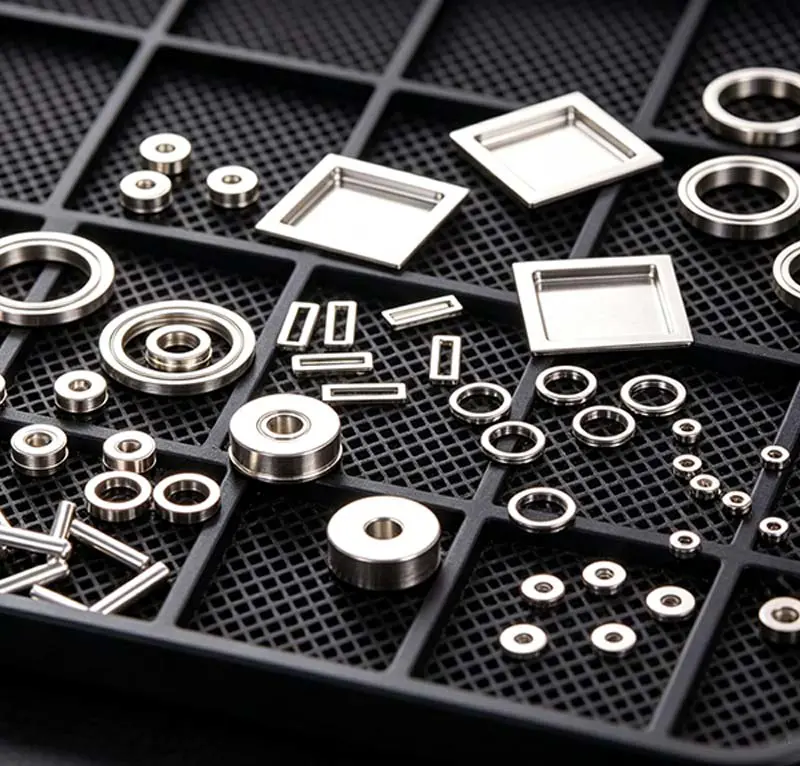

| Physical Form | Closed frames, washers, rectangular sheets and custom-shaped solid solders |
| Dimensions and Tolerances | Dimensions can be provided to suit application requirements, ensuring accurate solder distribution |
| Process Features | Facilitates solder placement control and consistent application, enhancing assembly reliability |
| Process Compatibility | Compatible with automated pick-and-place processes, suitable for stable batch production |
| Applications | Suitable for applications such as hermetic soldering and precision packaging |
* For further product information and application support, please contact us
